Load Bearing: 20 Tons
Warranty: 12 Months
Body material: Heavy duty casting aluminum
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Solar Road Stud Features:
•High shock resistance, energy-saving, environment friendly.
•Automatically starts to work when night falls or with the onset of inclement weather.
•These aluminum alloy LED Solar Road Stud are naturally charged by the sun.
•The LED lights of the Led Solar Road Stud lights come on automatically as soon as it starts getting dark every night.
•effective, solar road stud lights are easy to install and require absolutely no wires or maintenance.
•Dramatically enhances the look of your garden/yard/driveway.
•Specifically designed with road safety in mind and can help to prevent serious accidents and emit rather than reflect light.
•Accept OEM/ODM
Solar Road Stud lights Parameters:
| Material: | Heavy duty casting aluminium |
| Power supply: | Solar panel(monocrystalline 2.5V/0.2W) |
| Battery: | NI-MH 1.2V/800MAH |
| Working model: | Blinking or Constant Charging at daytime and working automatically at night |
| LED: | Diameter 5mm;2pcs or 3pcs per side |

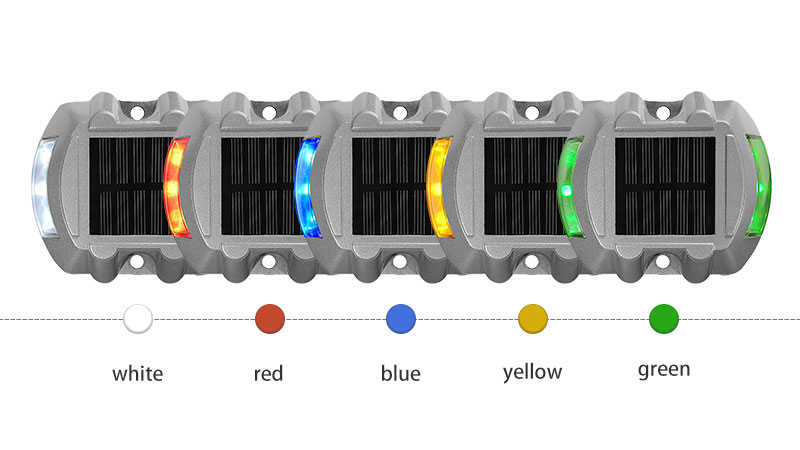

| LED colors: | Yellow, White, Red, Green, Blue |
| Life span: | 3 years |
| Resistance: | >20T(static) |
| Size: | L108mm*W97mm*H25mm (L4.25″*W3.82″*H0.98″) |
| Visual distance: | >800M |
| Water poof: | IP68 |
| Carton Size: | 2pcs/box; 60pcs/ctn; Weight: 21kgs; Carton size:58.5*24.5*18.5cm (2pcs/box; 60pcs/ctn; Weight: 46.30bs; Carton size:23.03″*9.65*7.28″) |

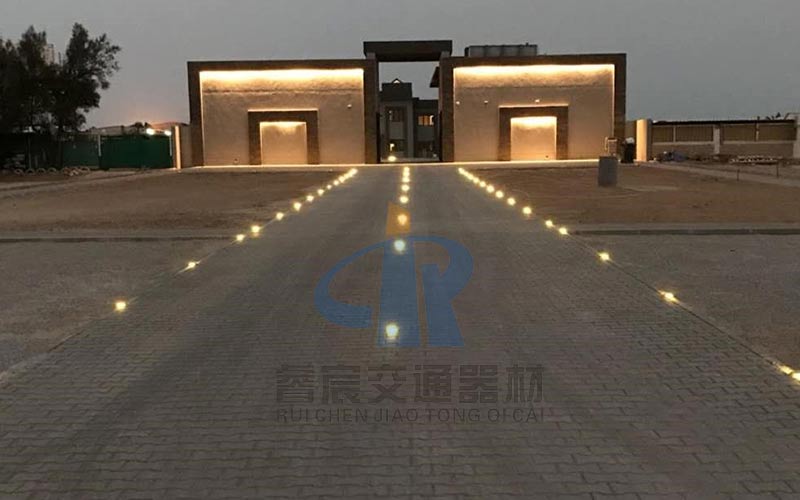

Application of Solar Road Stud for dock A1:
♥Schools and hospitals
♥Gardens
♥Deck and Dock
♥Walking paths
♥Bridge
♥Parks and campuses
♥Roundabout
Installation Method Of Solar Road Stud lights A1:
1. Determine the installation location and distance, clean the road surface, and ensure that the solar road stud lights are installed on a flat road surface.
2. Clean the bottom of the Solar Road Stud and apply the epoxy glue evenly to the back of the Solar Road Stud.
3. Press the side with the glue on the road, fix the position, wait for the glue to dry.
4. Check within 2 hours of installation to ensure that all Solar Road Stud are not installed incorrectly and are not bent or deformed due to compression.
5. Remove the installation isolation facility within 6-8 hours after the installation of the solar road stud lights.
