Load Bearing: >20T(static)
Warranty: 18 Months
Body material: Heavy-duty casting aluminum
Power supply: The solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Aluminum Solar Road Stud light Features:
•Up to 800 meters of visibility.
•Reliable all night, all-year-round performance.
•Totally sustainable harnessing free solar energy.
•Used where street lighting is either unavailable, Solar Road Stud not cost-effective or environmentally impossible.
•Cost-effective, LED Solar Road Stud are easy to install and require absolutely no wires or maintenance.
•Solar-powered Solar Road Stud self-contained surface mounted.
•Solar studs for road accept OEM/ODM
LED Solar Road Stud for road Parameters:
| Material: | Heavy-duty casting aluminum |
| Power supply: | The solar panel(monocrystalline 2.5V/0.2W) |
| Battery: | NI-MH 1.2V/800MAH or lithium battery |
| Working model: | Blinking or Constant Charging at daytime and working automatically at night |
| LED: | 3pcs per side, total 6 pcs |

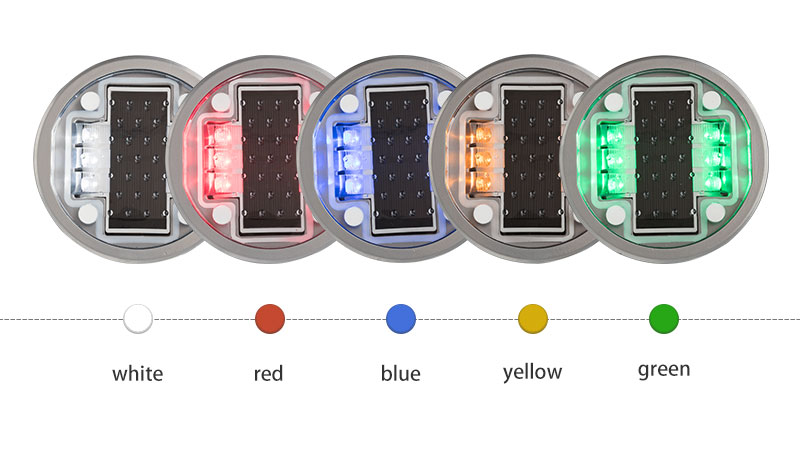

| LED colors: | Yellow, White, Red, Green, Blue |
| Life span: | 3 years |
| Resistance: | >20T(static) |
| Size: | 120*50mm(bottom) 4.72″*1.97″(bottom) 135*50mm(upper) 5.31″*1.97″(upper) |
| Visual distance: | >800M |
| Water poof: | IP68 |
| Carton Size: | 24pcs/ctn; weight: 17kgs; Carton size: 43*25*28CM/57*41*23.5CM 24pcs/ctn; weight: 37.48bs; Carton size: 16.92″*9.84″*11.02″/22.44*16.14″*9.25″ |
Application of Aluminum LED Solar Road Stud C1:
♥Schools and hospitals
♥Highways
♥High traffic areas
♥Walking paths
♥Transit stations
♥Parks and campuses
♥Urban Road
Installation Method Of Embedded Aluminum Solar Road Stud C1:
1. Carefully mark the distance between the placement of Solar Road Stud. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill Φ120mm and depth will be 50mm.
2. Remove all debris from the installation hole.
3. Pour epoxy into the holes per the manufacturer’s instruction.
4. Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the led solar road stud shaft.
5. Set the lighting surface of the Solar Road Stud to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Solar Road Stud.
6. After curing the LED Solar Road Stud for 6-8 hours, remove the installation of the isolation facility.
