Body Material: ABS
Size: 102*102*22mm+50mm (4.02″*4.02″*0.87″+1.97″)
Filling: Epoxy+Quartz sand
Lens Material: PMMA

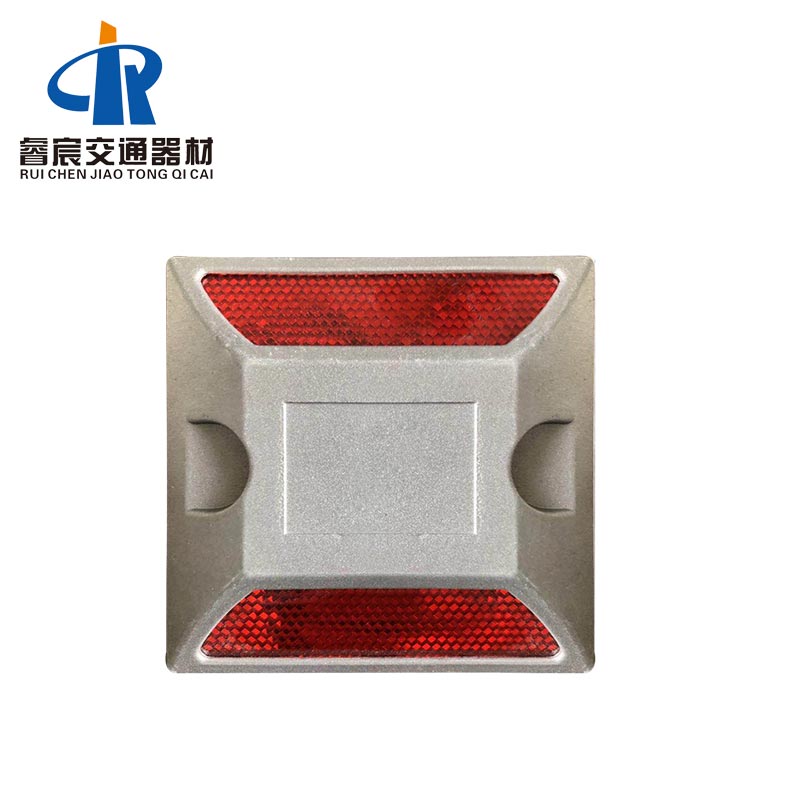

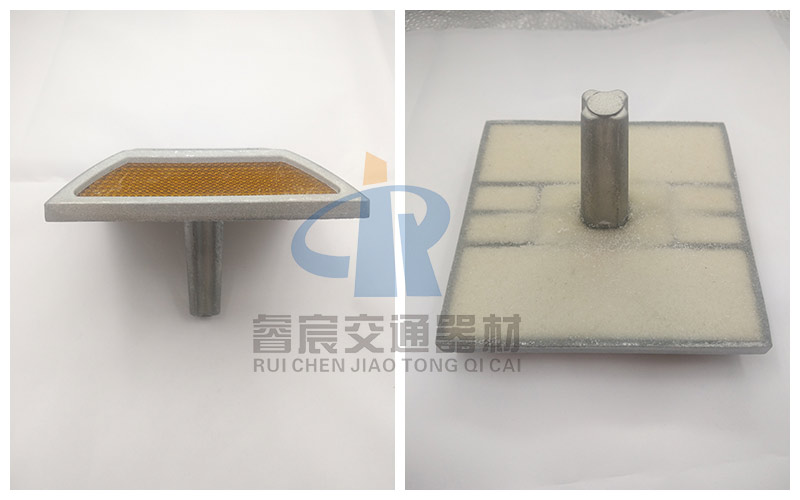

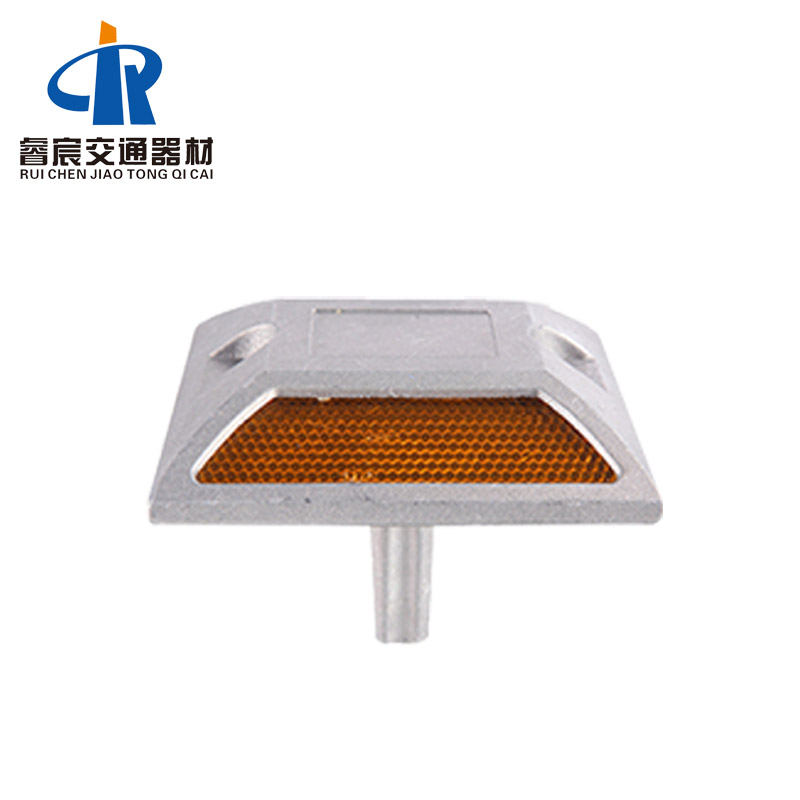

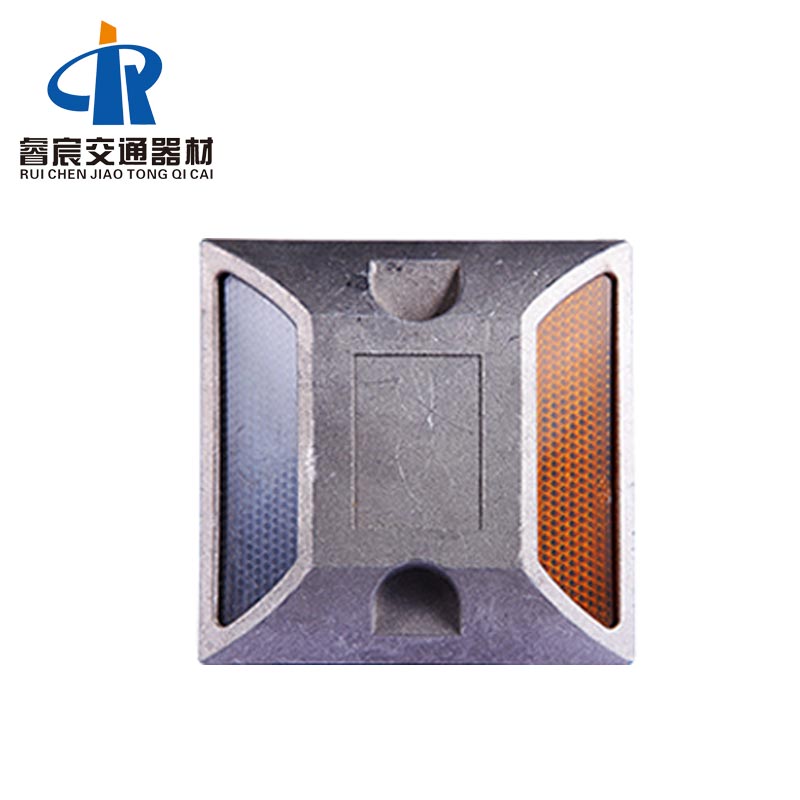

Reflective Solar Road Stud Marker Features:
•Reflective Solar Road Stud water, oil, chemical, and heat resistance.
•Aluminium reflective Solar Road Stud marker can work more than 3 years normally.
•Very high reflectivity.
•Reflective Solar Road Stud easy installation with glues.
•Photometric values:exceeds 600(mcd/lux).
Reflective Solar Road Stud Marker Parameters:
| Body material: | ABS |
| Filling: | Epoxy+Quartz Sand |
| Lens Material: | PMMA |
| Reflector type: | Double side/Single side |
| Quality: | ASTM D4280 & EN1463-1 standard |
| Size: | 102*102*22mm+50mm (4.02″*4.02″*0.87″+1.97″) |
| Packing: | 38*36*22.5cm, 50pcs/ctn (14.96″*14.17″*8.86″, 50pcs/ctn) |
| Weight: | 320g/pc; 19kg/ctn (0.71bs/pc; 41.89bs/ctn) |
Installation Method Of Reflective Solar Road Stud Marker:
1. Determine the installation location and distance, clean the Solar Road Stud surface, and ensure that the Solar Road Stud are installed on a flat road surface.
2. Clean the bottom of the Solar Road Stud and apply the epoxy glue evenly to the back of the Solar Road Stud.
3. Press the side with the glue on the road, fix the position, wait for the glue to dry.
4. Check within 2 hours of installation to ensure that all Solar Road Stud are not installed incorrectly and are not bent or deformed due to compression.
5. Remove the installation isolation facility within 6-8 hours after the installation of the Solar Road Stud.
